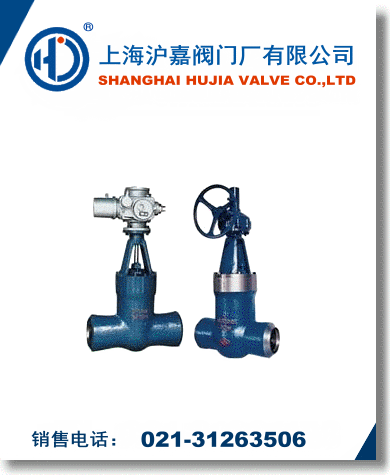

高压焊接闸阀广泛适用于石油化工，火力发电厂等油品、水蒸气管路上作接通或截断管路中介质的启闭装置。
高压焊接闸阀产品特点
1、结构紧凑、设计合理、阀门刚性好、通道流畅，流量系数小
2、密封面采用不锈钢和硬质合金，使用寿命长
3、采用柔性石墨填料、密封可靠，操作轻便灵活
4、驱动方式为手动、气动、电动、齿轮传动
5、结构形式为弹性楔式单闸板、刚性楔式单闸板双闸板型式
|
● 制造与验收技术条件按日本火力发电用阀门标准E101和JB/T3595-93的规定； |
|
● 结构长度按E101的规定或按用户提供尺寸 |
|
● 焊接坡口接电力工业管理标准78DG的规定或按用户提供尺寸。 |
|
● The manufalture and aueptanle specigication shan be based on the japanese standard E101 applied for the thermal powerand JB/T3595-93 |
|
● The length shall bein line with E101 or by user’s speeification. |
|
● Welding groove shan be in auordanle with power industrh spe-cification 78DG or hg user’ specification |
|
● The size in inclose is old production’s size |
高压焊接闸阀性能规范Property and specifiecation
|
产品型号 Product type公称压力PN(MPa)Nominal pressure |
试验压力(MPa)Test pressure |
工作压力(MPa)Working pressure |
工作温度(℃)Working temperature |
适用介质Appicable medium |
|
强度试验Sheel test |
密封试验/上密封实验Seal test |
|
Z960Y-250 |
25 |
37.5 |
27.5 |
- |
≤425 |
水、蒸汽、Water,steam |
|
Z960Y-320 |
32 |
48.0 |
36.0 |
- |
≤425 |
|
Z960Y-P54100 |
- |
30.0 |
22.0 |
P5410 |
≤540 |
蒸汽 Steam |
|
Z960Y-P54170 |
- |
48.0 |
36.0 |
P5417 |
≤540 |
|
主要零件材料Matecrial for main parts |
|
零件名称Part name |
材料牌号Material designation |
|
阀体Body |
WCB |
WC6 |
WC9 |
|
阀板Disc |
WCB |
WC6 |
WC9 |
|
阀盖Bonnet |
25 |
12Cr1Mo1VA |
|
阀杆Stem |
1Cr17Ni2 |
20Cr1Mo1VA |
|
阀座Seat |
25 |
12Cr1Mo1VA |
|
密封环Sealing ring |
S软钢(增强柔性石墨)S soft steel (flexible graphite) |
S软钢S soft steel |
F软钢F Soft steel |
|
填料Packing |
增强柔性石墨Fexible graphite |
|
支架Yoke |
WCB |
WCB或WC6 |
|
阀杆螺母Stem nut |
45(ZCuZn25A16Fe3Mn3) |
|
四开环Four piece ring |
1Cr13 |
20Cr1MoVA |
|
高压焊接闸阀主要尺寸及重量Main dimensions and weight
|
公称通径DNNominal diameter |
主要外形尺寸和连接尺寸(mm)Main external and connecting dimensions |
电动装置Electric dewice |
重量(kg)Weight |
|
d |
L |
H |
L1 |
L2 |
|
Z60Y-250、Z61Y-250、Z62Y-250 |
|
100 |
84 |
406 |
1164 |
437 |
277 |
DZW45 |
234 |
|
125 |
100 |
483 |
1402 |
437 |
277 |
DZW60 |
343 |
|
175 |
158 |
711 |
1650 |
554 |
309 |
DZW180 |
638 |
|
225 |
200 |
864 |
1650 |
554 |
309 |
DZW180 |
654 |
|
300 |
280 |
1067 |
2106 |
764 |
398 |
DZW350 |
1973 |
|
Z60Y-320、Z61Y-320、Z62Y-320 |
|
100 |
96 |
533 |
1236 |
437 |
277 |
DZW60 |
291 |
|
125 |
118 |
610 |
1302 |
437 |
277 |
DZW60 |
315 |
|
150 |
148 |
762 |
1403 |
526 |
283 |
DZW90 |
672 |
|
175 |
148 |
762 |
1650 |
554 |
309 |
DZW180 |
684 |
|
225 |
222 |
1041 |
1650 |
554 |
309 |
DZW180 |
696 |
|
Z60Y-P54100V、Z61Y-P54100V、Z62Y-P54100V |
|
175 |
148 |
762 |
1650 |
554 |
309 |
DZW180 |
683 |
|
225 |
222 |
1041 |
1650 |
554 |
309 |
DZW180 |
704 |
|
250 |
222 |
1041 |
1795 |
554 |
309 |
DZW180 |
1214 |
|
300 |
294 |
1245 |
2080 |
554 |
309 |
DZW250 |
2125 |
|
Z60Y-P54170V、Z61Y-P54170V、Z62Y-P54170V |
|
125 |
98 |
630 |
1230 |
437 |
277 |
DZW60 |
312 |
|
225 |
186 |
1060 |
1680 |
554 |
309 |
DZW180 |
1401 |
|
300 |
278 |
1397 |
2265 |
764 |
|
DZW500 |
2834 |
|
325 |
310 |
1448 |
2265 |
690 |
398 |
DZW500 |
2632 |
|
350 |
338 |
1550 |
2536 |
715 |
|
DZWC-4 |
5591 | |
